Item: KN650
Weight: 650g/m²
Width: UP TO 320cm
Finish: Glossy, Matt, Acrylic finished
Base fabric: High tenacity polyester 1100 dTex
Tensile strength: Warp 2600N/50mm, Weft 2500N/50mm (test method: NF EN ISO 1421)
Tear strength: Warp 320N, Weft 280N (test method: DIN 53363)
Coating: PVC
Coating adhesion: 100N/50mm (test method: NF EN ISO 2411)
Temperature stability: -30°C (-22°F) / + 70°C (158°F)
Thickness: 0.50mm
AVERAGE VALUES +/- 10% NON CONTRACTUAL

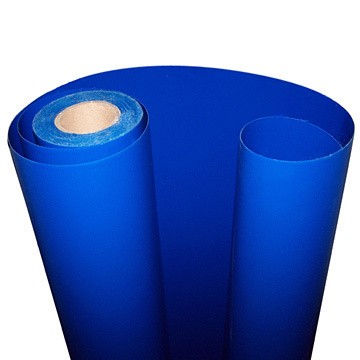

What is PVC tarpaulin?
PVC tarpaulin consists of 100% polyester fabric as a base. It is then coated thoroughly with PVC on both sides of the base fabric. This method of production allows the fabric to be strong and tensile, whilst maintaining the flexibility and lightness of the fabric. After the PVC coating is applied various surface treatments can also be applied to enhance various elements of the fabric.
Features and Applications
- 100% waterproof and High durability
- Very tough to tear
- Repairable by heat sealing
- Stays light in rains
- Easy to handle
- Fungus and termite resistant
- UV stabilized
- Available from 300-1700gsm

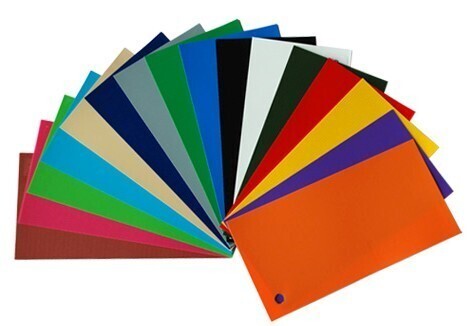

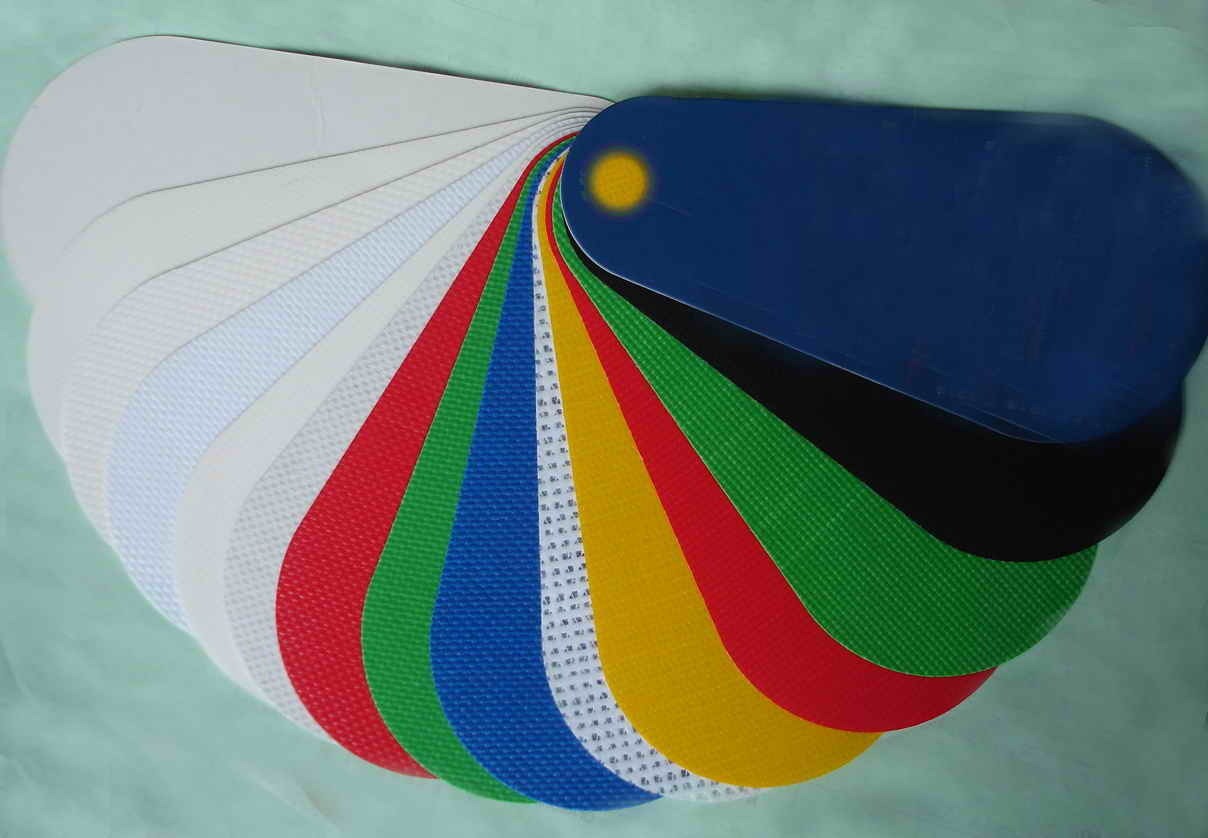

- Available in a range of attractive colors
- Widely used as truck covers
- Pond lining, Awing, Inflatables, Cricket cover proof
- Industrial uses
The Features of pvc coated tarpaulin:
· Hot-melt Coating technology(Semi-coating).
· Good peeling strength for welding.
· Outstanding tearing strength.
· Flame retardant (optional)
· Anti-ultraviolet treatment(UV). (optional)
· Acrylic treatment (optional).
· Temperature resistance: -20°C- 70°C
1.PVC Coated Tarpaulin:
| Type | Description | Base Fabric | Weight(g/sqm) | Length(m) | Width(m) |
| M1020/610 | PVC Coated Tarpaulin | 1000*1000D, 20*20/sq.in, Weave fabric | 610 (18oz) | 50m/roll | 1.6/2.5/2.8/3/3.2 |
| M1020/650 | PVC Coated Tarpaulin | 1000*1000D, 20*20/sq.in, Weave fabric | 650 (19oz) | 50m/roll | 1.6/2.5/2.8/3/3.2 |
| M1020/750 | Coated Tarpaulin, Blockout | 1000*1000D, 20*20/sq.in, Weave fabric | 750 (22oz) | 50m/roll | 1.6/2.5/2.8/3/3.2 |
| MB1020/900 | Coated Tarpaulin, Blockout | 1000*1000D, 20*20/sq.in, Weave fabric | 900 (26.5oz) | 50m/roll | 1.6/2.5/2.8/3/3.2 |
| M1030/900 | Coated Tarpaulin, Side Curtain | 1000*1000D, 30*30/sq.in, Panama fabric | 900 (26.5oz) | 50m/roll | 1.6/2.5/2.8/3/3.2 |
| M1030/1100 | Coated Tarpaulin | 1000*1000D, 30*30/sq.in, Panama fabric | 1100 (32oz) | 50m/roll | 1.6/2.5/2.8/3/3.2 |
2.PVC Laminated Tarpaulin:
| Type | Description | Base Fabric | Weight(g/sqm) | Length(m) | Width(m) |
| M5099/550 | Hot laminated tarpaulin | 500*500D 9*9/sq.in | 550 (16oz) | 50m/roll | 1~3.2m |
| M1099/550 | Hot laminated tarpaulin | 1000*1000D 9*9/sq.in | 550 (16oz) | 50m/roll | 1~3.2m |
| M1099/610 | Hot laminated tarpaulin | 1000*1000D 9*9/sq.in | 610 (18oz) | 50m/roll | 1~3.2m |
| M5099/610 | Tranparent Laminated Tarpaulin | 500*500D 9*9/sq.in | 610 (18oz) | 50m/roll | 1~3.2m |
| MC3518/400 | Color Strip Tarpaulin | 300*500D, 18*12/sq.in | 400 (12oz) | 50m/roll | 1.5~2m |
| MF301816/400 | Laminated Tarpaulin | 300*300D, 18*16/sq.in, Woven fabric | 400 (12oz) | 50m/roll | 1.5~2m |
| M501816/610 | Laminated Tarpaulin | 500*500D 18*16/sq.in, Woven fabric | 610 (18oz) | 50m/roll | 1.5~2m |
TRUCK & CONTAINER COVER
TENT & MEMBRANE
